Correct Use and Precautions for PE Etched Sheets

Correct Use and Precautions for PE Etched Sheets

👋Hello everyone! Today I will be sharing this week’s most popular technical topic《Correct Use and Precautions for PE Etched Sheets》

1. Surface Preparation Before Painting PE Parts

Before painting photo-etched (PE) parts, it is recommended to lightly sand the surface first to improve adhesion.

Suggested steps:

  1. Lightly sand the PE part to remove oxidation and oil.

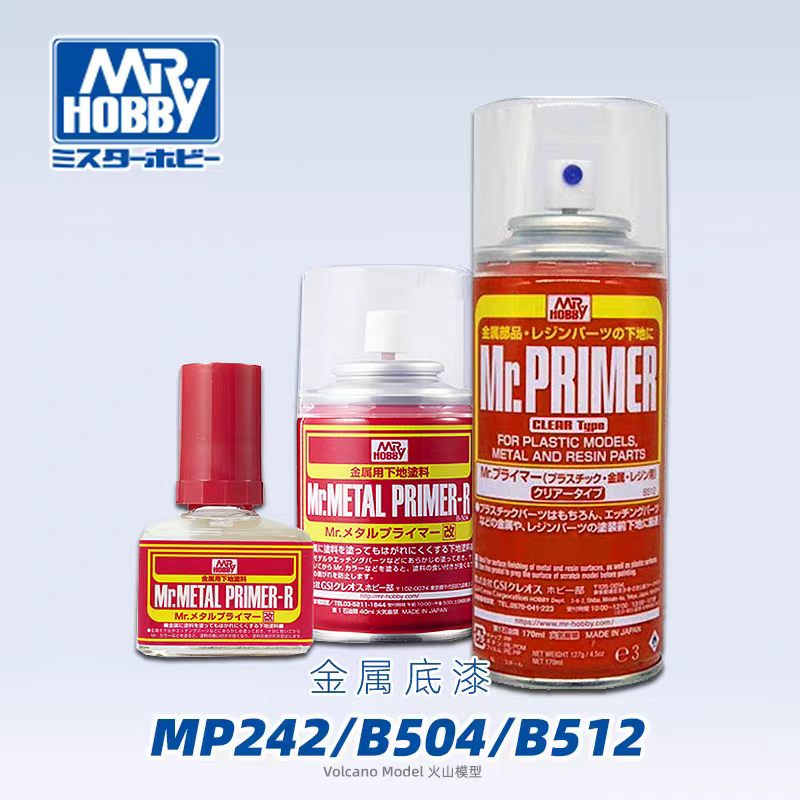

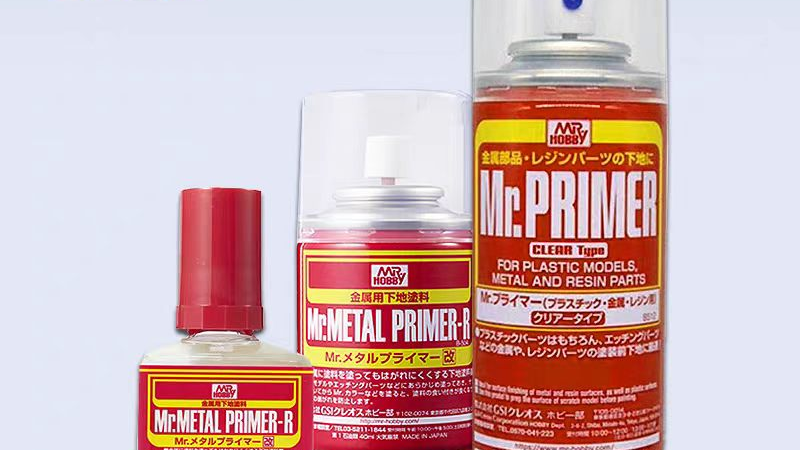

  2. Use a metal primer mixed with thinner at a 1:3
  3. Add the mixed metal primer into your regular primer.
  4. This will make the paint finish more durable and less likely to peel off.

Reference image:

2. Creating Wear Effects on Brake Discs

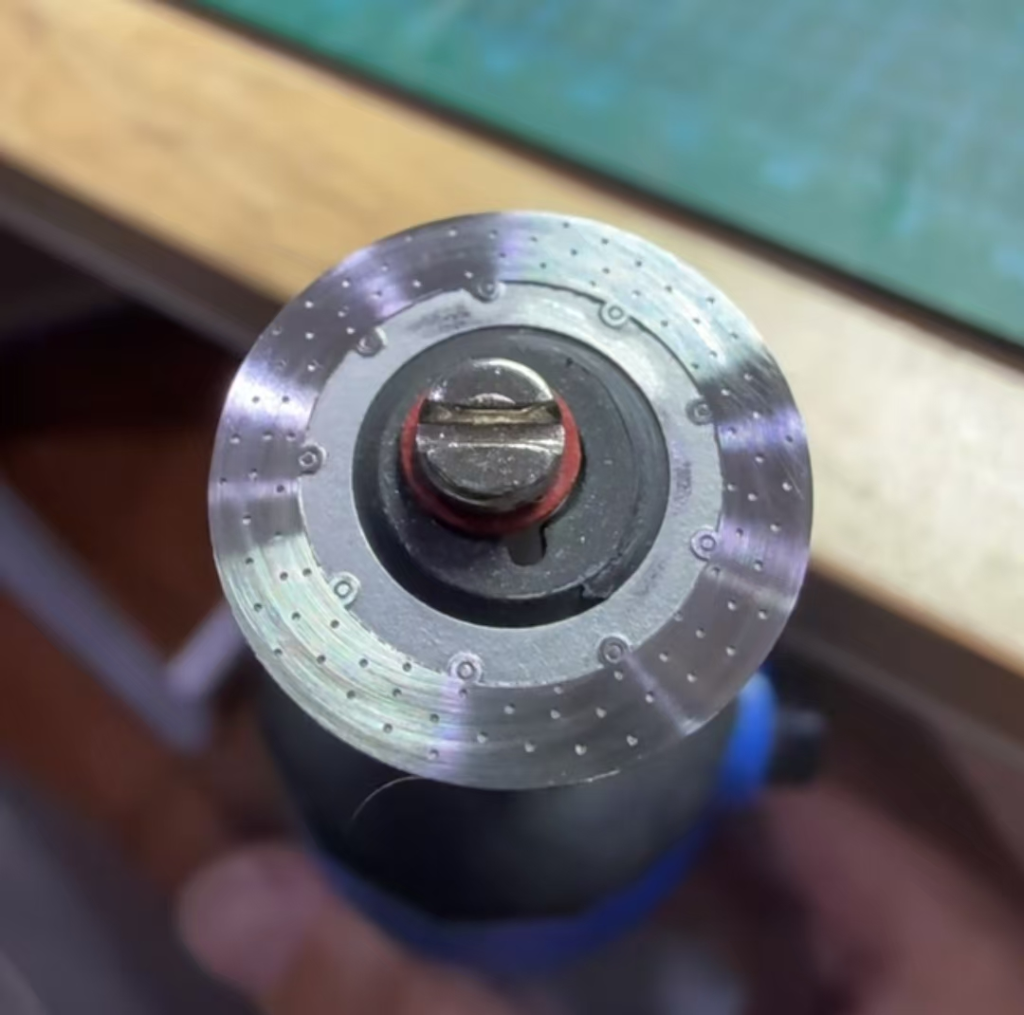

If you want to create a used or worn effect on a painted brake disc, you can fix it onto a drill backing pad and polish it.

Tips:

  • Work at low speed with light pressure.
  • Remove material gradually.
  • This method is suitable for showing edge wear and realistic usage marks.

Reference image:

3. Bonding PE Parts to Plastic or Resin Bodies

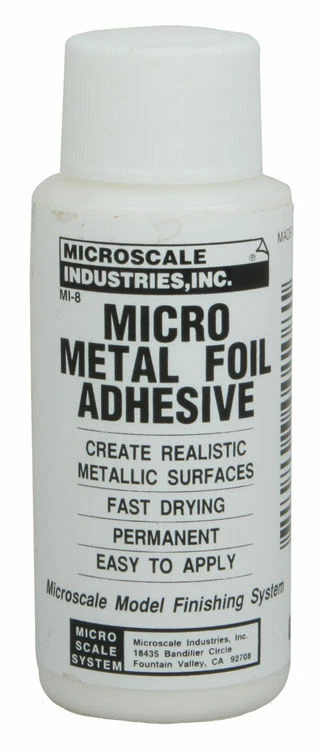

To attach PE parts onto plastic or resin bodies, you can use MicroScale Micro Metal Foil Adhesive MI-8.

How to use:

  1. Use a toothpick to pick up a small amount of glue.
  2. Apply it to the designated area.
  3. Join the parts together and press into position.
  4. If there is excess glue, wipe it off with a cotton swab.
  5. Let it dry completely.

Reference image:



4. Bending PE Parts

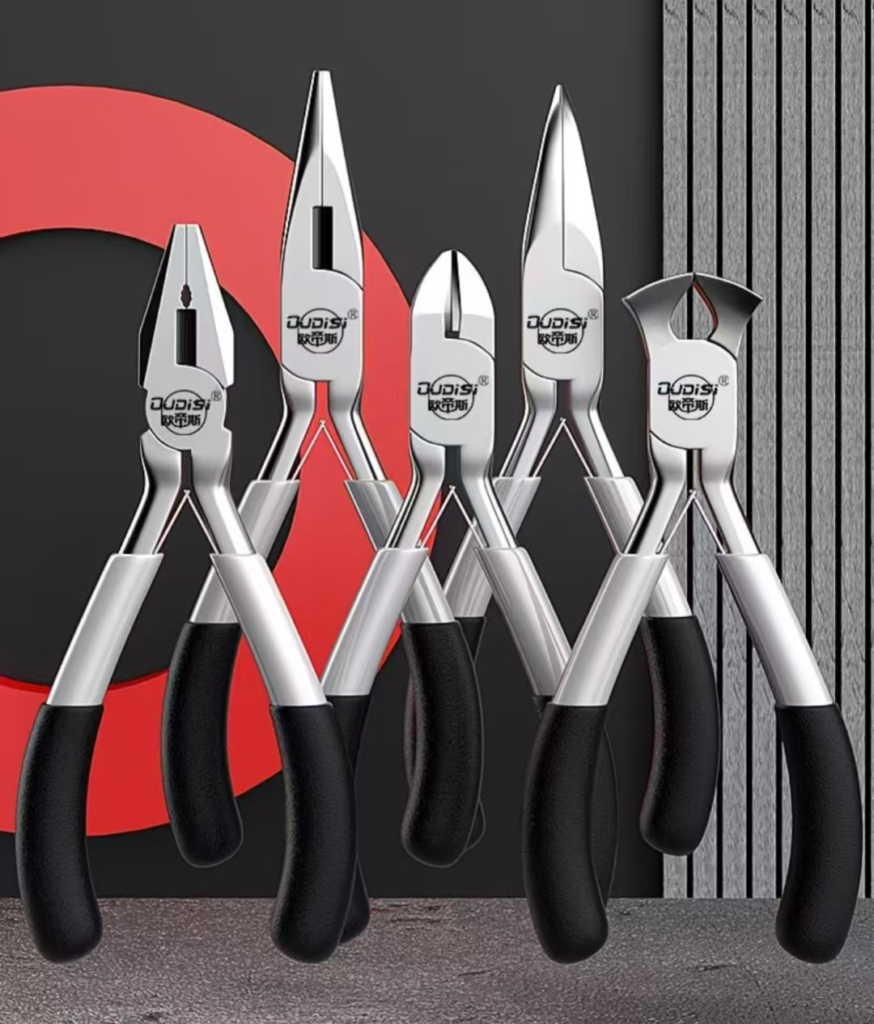

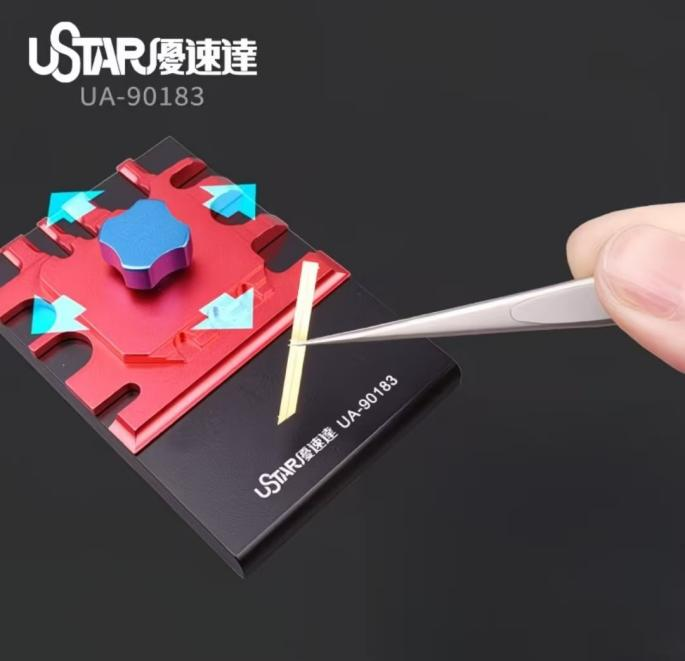

If you need to bend PE parts, use a dedicated PE bending tool or suitable pliers.

Tips:

  • Mark the bending line first.
  • Apply pressure slowly and evenly.
  • Use specialized tools for small or delicate parts.

Reference image:

5. Joining PE to PE

There are two main ways to join PE parts together:

  • Glue bonding

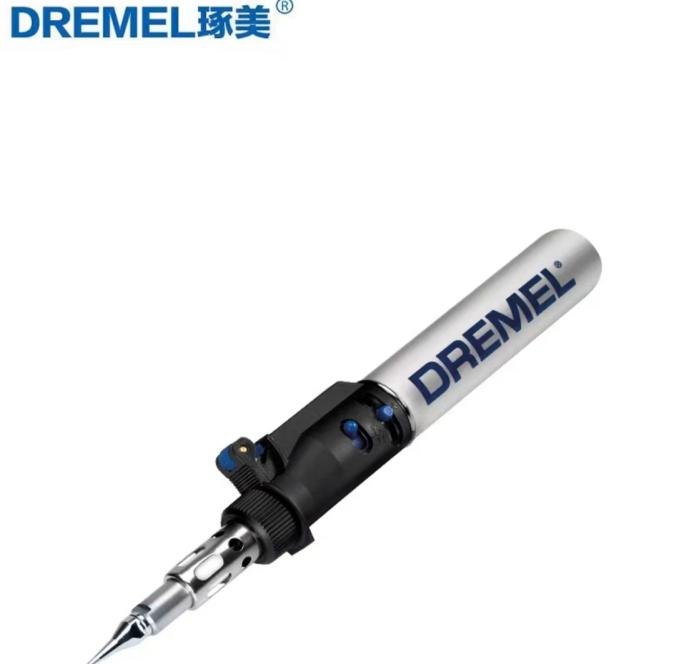

  • Soldering with a soldering iron

For most builders, glue is the easier and more convenient option.

Recommended adhesive:

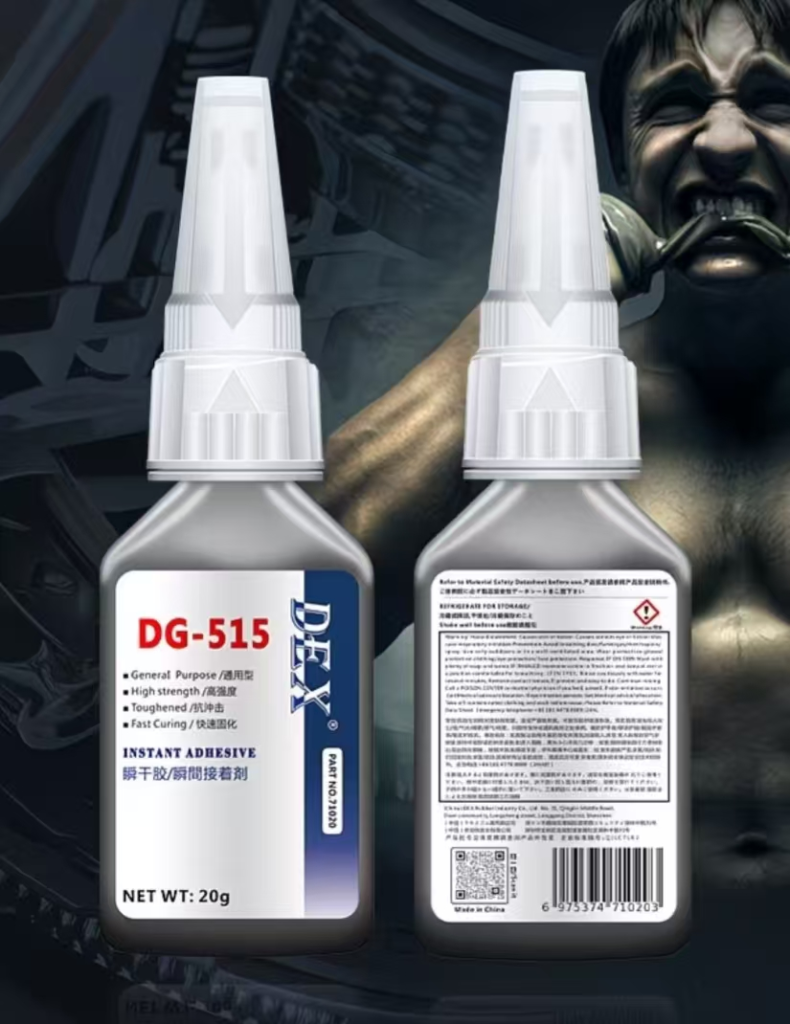

  • DG-515

Suggestion:

  • Use glue for simplicity and convenience.
  • Use soldering if you need a stronger metal-to-metal bond.

Reference images:

6. Important Notes

  • PE parts are thin, so avoid forcing them during bending.
  • Always prepare the surface before painting.
  • Confirm the position before bonding to avoid glue stains on visible surfaces.
  • Sanding, bending, and soldering should be done on a stable workbench.
  • Use tweezers, toothpicks, or other small tools for tiny parts.
